JM-VG03 Professional Vehicle & Bike GPS Tracker
Roll over image to zoom in
QR450
- GSM 850 / 900 / 1800 / 1900 MHz
- GPS + GSM + GPRS network
- Real-time position &tracking
- Built-in GSM & GPS antenna
- Built-in acceleration sensor for vibration alarm
- Remote Power cut off
- Support ACC detection, real-time reporting car status
- ulti ways to query position: SMS,APP,web browser
- 9-90V Wide voltage range apply to all vehicle types
- Driving Behavior Analysis (Basic)
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.

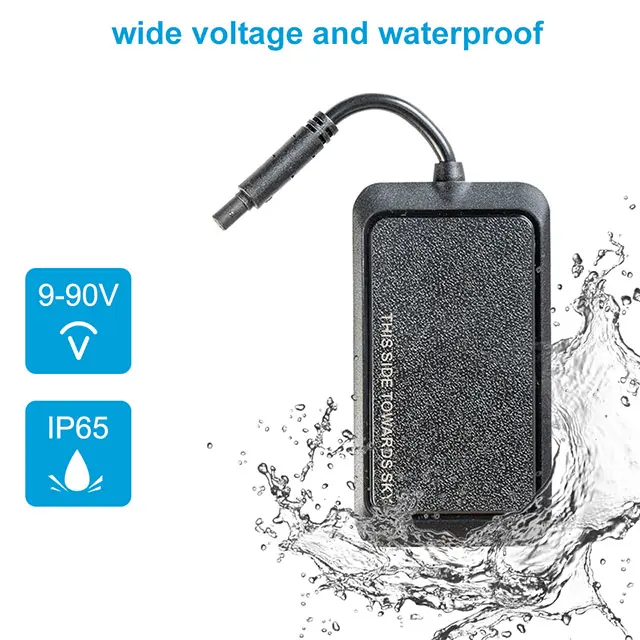

IP65 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Geo-fence
A virtual area set on platform by yourself, you’ll be informed when vehicle crossing its boundary.
Multiple Alerts
Instant alerts for atypical events such as low battery, speeding, removal, drifting, etc.
- IP65 Dust & Water Resistance
- Remote Cut-Off (Fuel/Power)
- Ignition Detection
- Geo-fence
- Multiple AlertsTechnical Parameter:Â
Specifications Weight 38g Dimensions 78 (L) × 41(W) × 13 (H) mm Working voltage / current 9-90vDC / 7mA Operating temperature -20℃ – 70℃ Operating humidity 20% to 80% non-condensing LED indicator 3 LED indicator: GPS-blue, GSM-green, Power-red GSM 850 / 900 / 1800 / 1900 MHz GPRS Class12, TCP/ IP build in GSM Module GPS MT3336 Frequency L1, 1575.42MHz C/A code GSM antenna Built-in quad band GPS antenna Built-in GPS high gain ceramics patch antenna. GPS Channels 66 Tracking sensitivity -165dBm Acquisition sensitivity -148dBm GPS starting time Hot start: < 2 sec(open sky) Cold start: <45 sec(open sky) Battery 3.7vDC / 270mAh Working hours 3.6 hours GPS Position Accuracy <10m Data Transmit TCP, SMS Geo-fence Alarm support Over speed Alarm support Low Power Alarm support Movement Detection support Mileage Report support Remote Control petrol/electronicity support Vibration alarm support History playback Support 3 months APP System support Ios and Android
Additional information
| color | Black, Red, White |
|---|---|
| hard-drive | 128 GB, 64 GB |
| ram | 16G, 8G |
| screen | 7.5 inch |
Reviews
There are no reviews yet.
