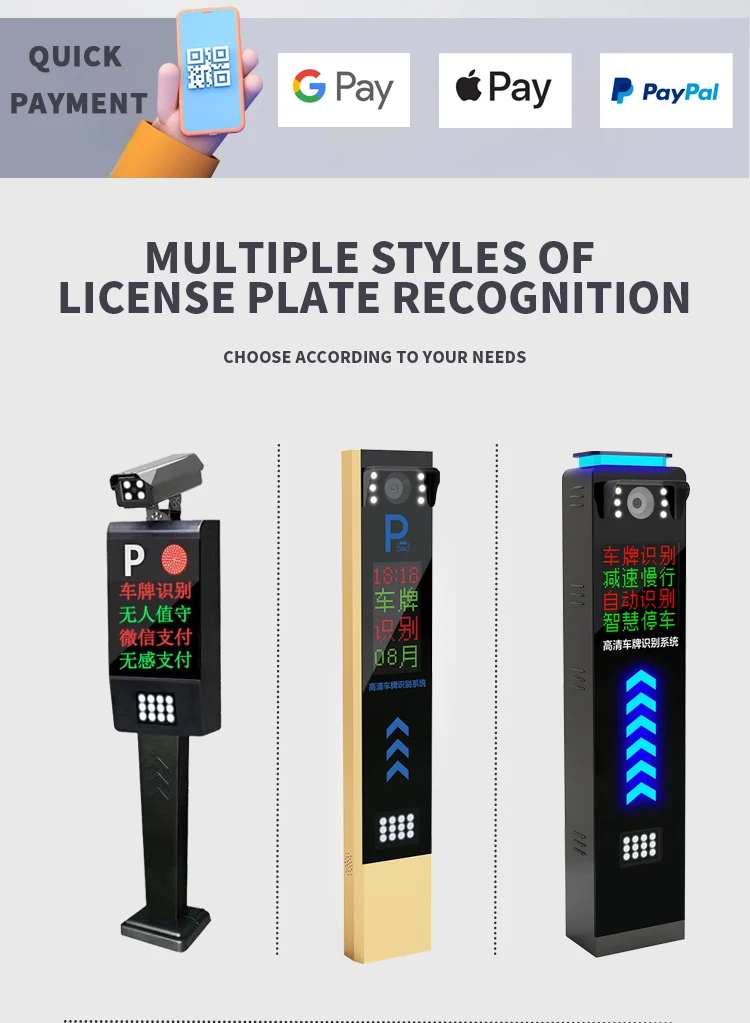

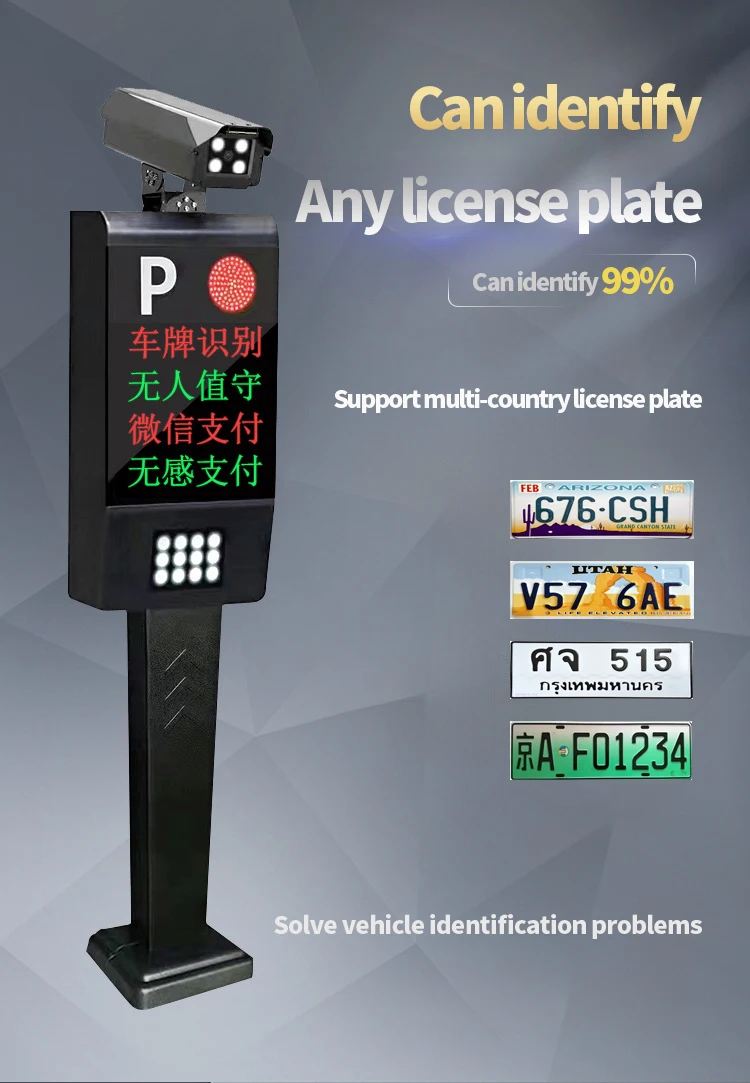

All One Automatic Number License Plate Recognition Vehicle System With ANPR / LPR Camera For Car Parking Management

QR6,000

Out of stock

  • Automatic Number-Plate Recognition
  • Law Enforcement
  • Traffic Management
  • Parking Management
  • Border Control and Security
  • Electronic Toll Collection
SKU: VS75566341230 Category: Tags:,

Overview

Product name
License Plate Recognition Machine
Working voltage
AC220V±10%
Working temperature
-25℃~+70℃
Relative humidity
≤95%, no condensation (at room temperature)
Rated power
60W
Communication method
TCP/485

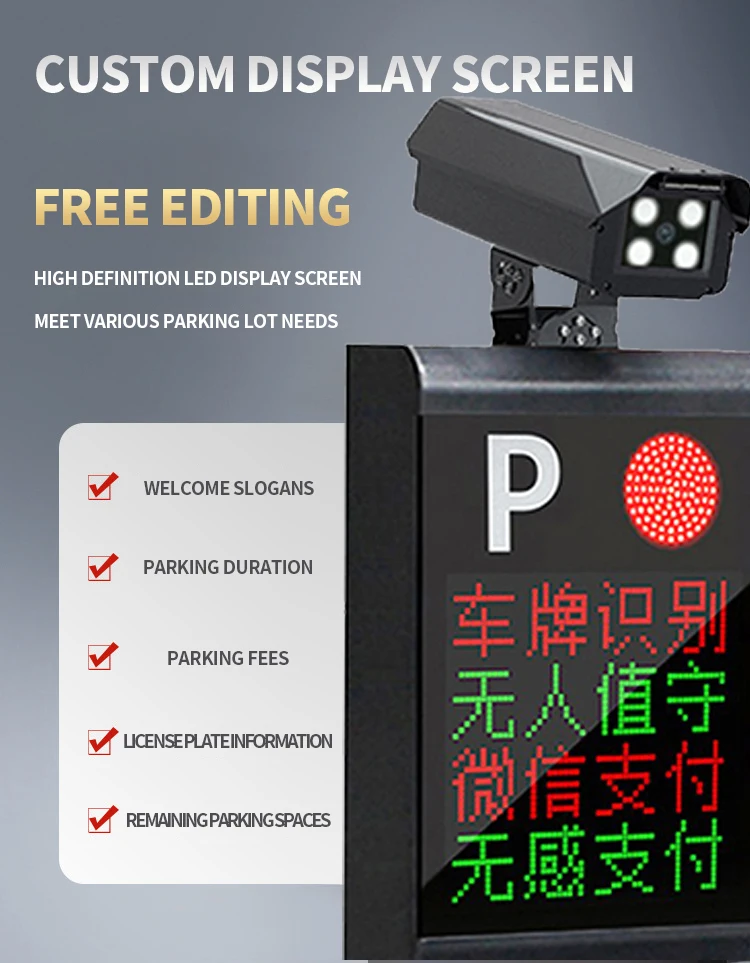

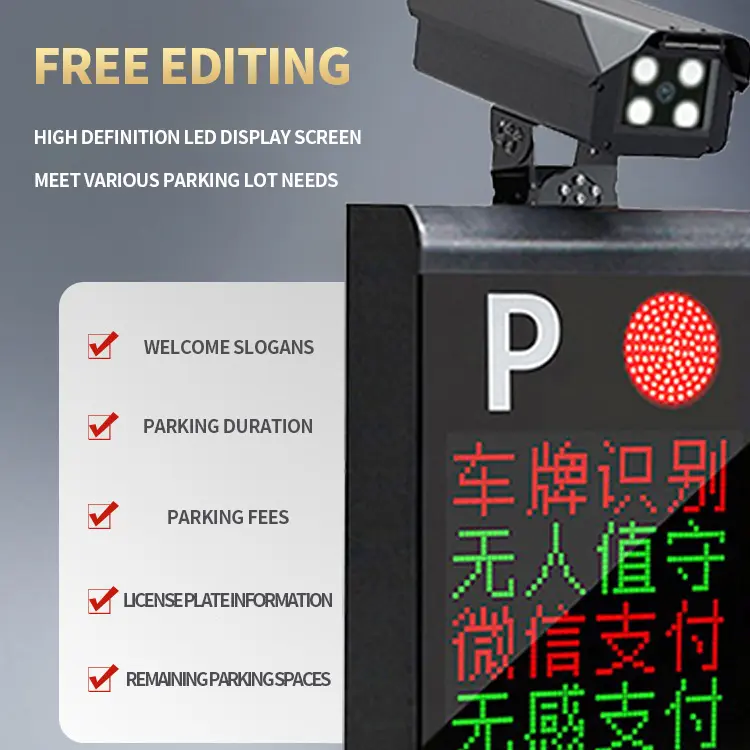

LED display
4-line display
Enclosure protection level
IP54
Chassis material
1.2mm thick high-strength steel plate, 4mm tempered glass
Chassis process
Sheet metal mold molding, spray color gold

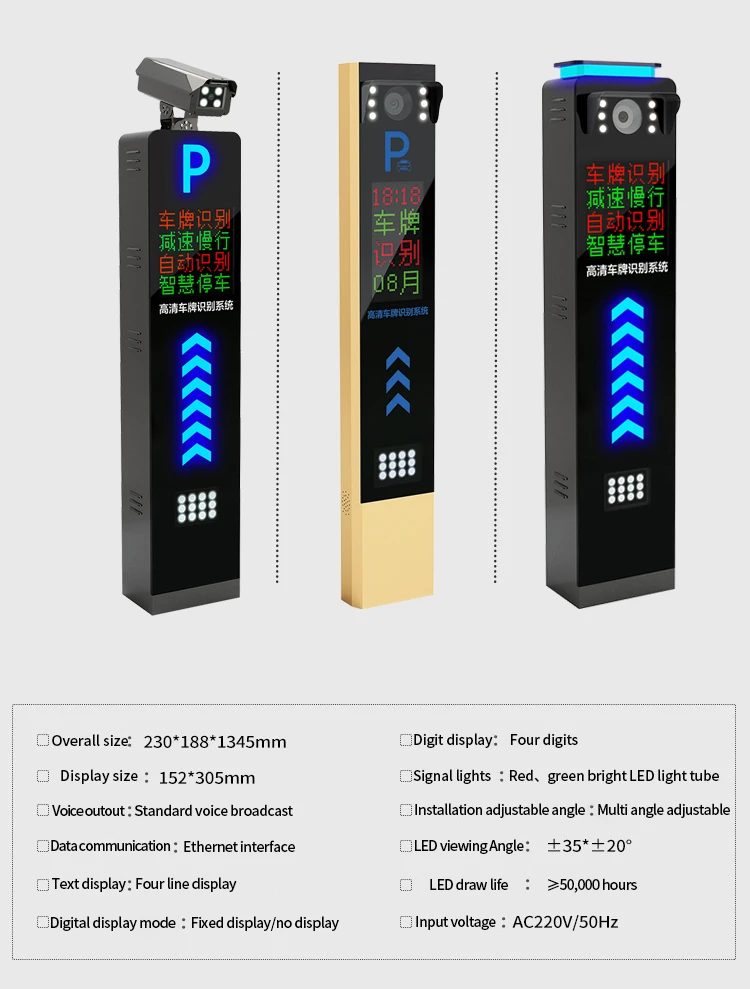

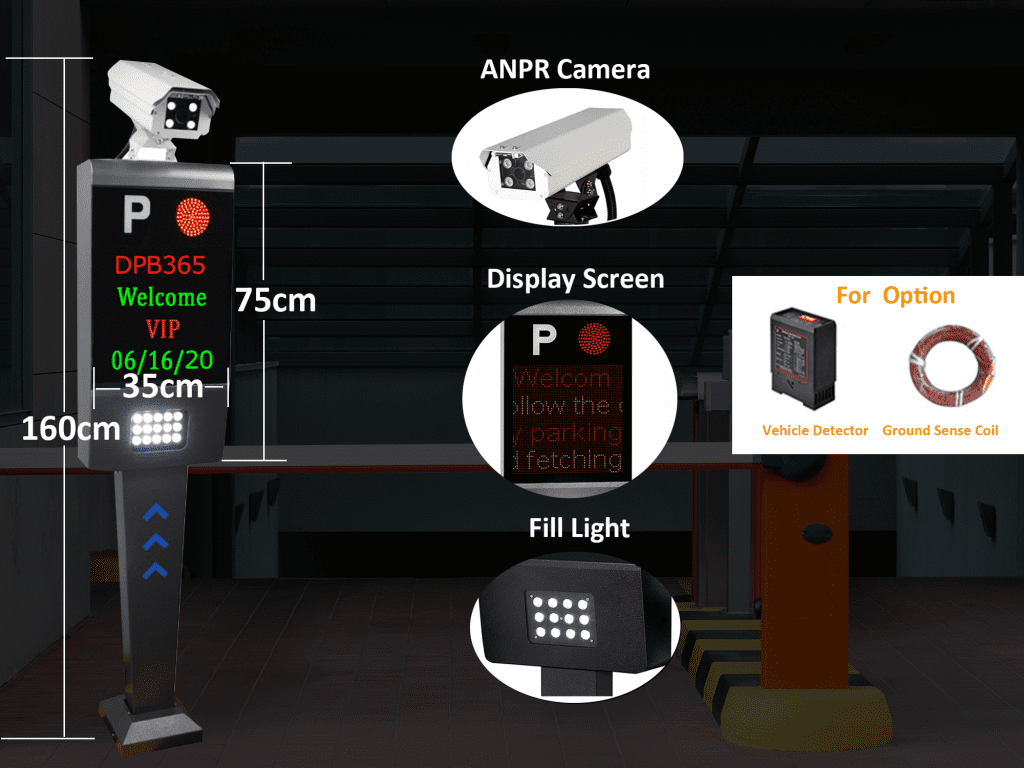

Dimensions and specifications
355*152*1365mm (length*width*height)
Power supply
12V—2A
Maximum power consumption
15W
Protection level
IP66
Communication connection method
SDK, ONVIF, HTTP, RTSP, TCP, RS485, IO

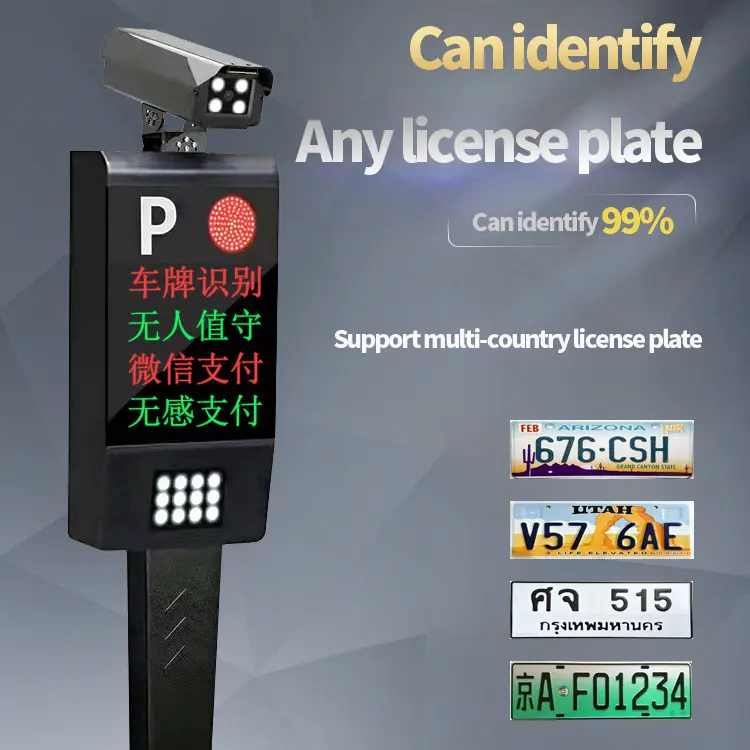

License plate recognition rate
≥99%
Adaptive speed range
0-40 km/h
Recognition angle
≤45°
Image sensor
1/2.7″ CMOS or 1/2.8″ CMOS
Trigger type
Coil or video
Resolution
1920x1080dpi
Optimal recognition distance
3-6 meters
Frame rate
25 frames/second
Output information
Vehicle feature image, license plate image, license plate number, color, type, passing time
Output image format
JPEG
Output video format
H.264
Storage
Expandable microSD Card
Manually restore factory settings
Reset

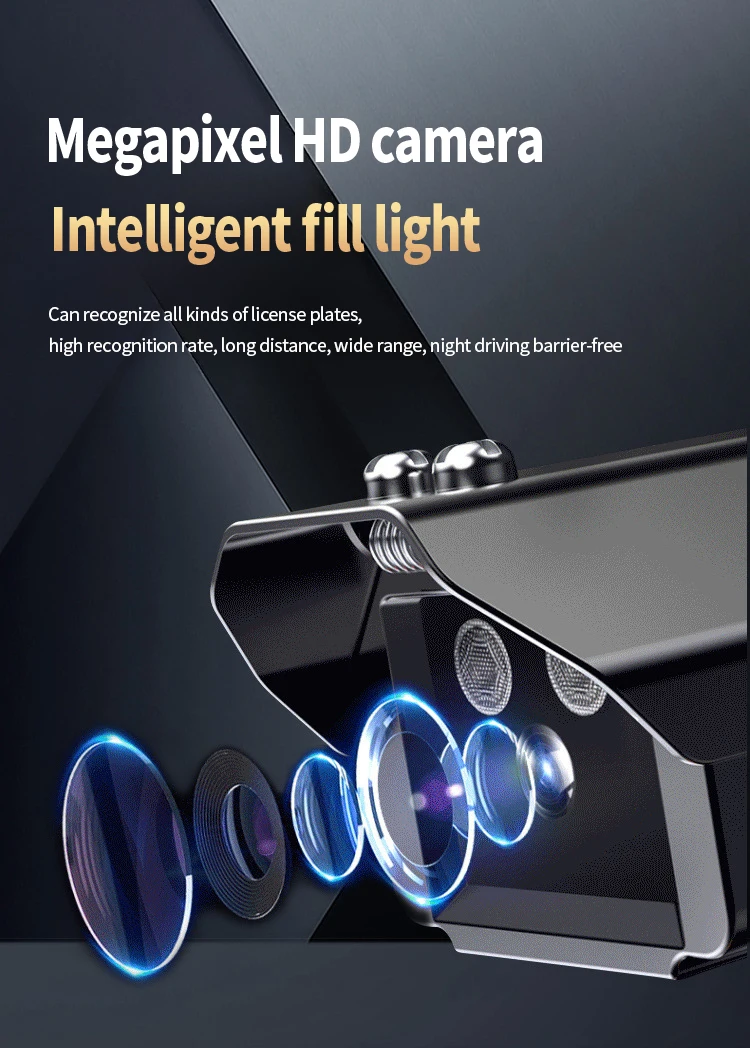

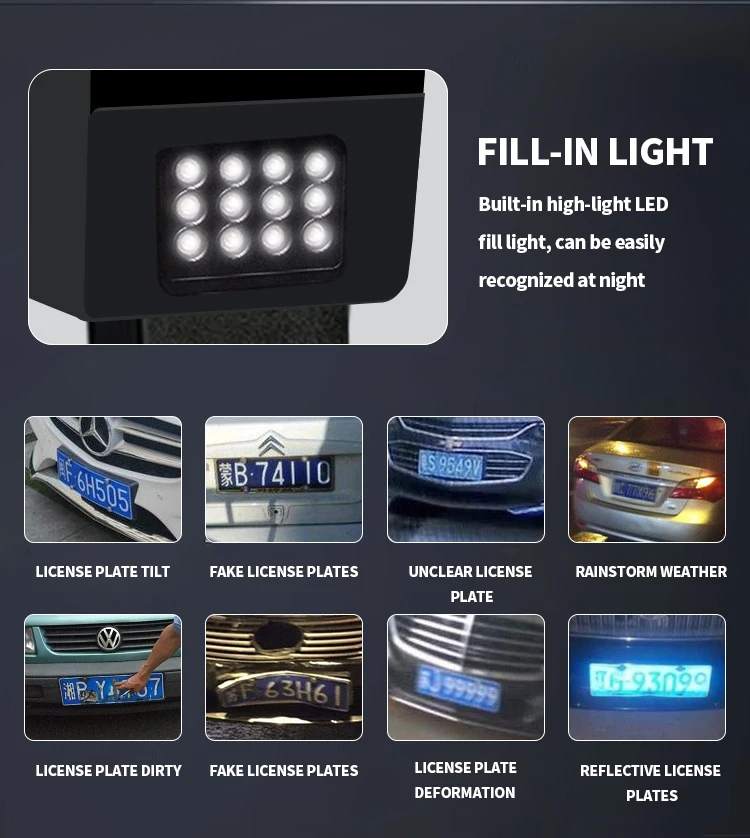

Fill light
Built-in 4 fill lights, adjustable brightness (maximum power consumption of a single light is 1W)
Lens
Electric zoom or 6mm fixed focus
Number of lamp beads
12 LED lights
Power
12W
On/off control
Photosensitive control settings
Fill light distance
Lighting greater than 50LUX at 5m
Adjust angle
3D universal adjustable, adjustment range 20 degrees

How to Select an ANPR System?

When obtaining an ANPR system, several factors should be considered. The following guidelines can assist in making an informed decision:

  1. System Requirements: The specific needs and requirements for the ANPR system should be thoroughly assessed. Factors such as expected vehicle volume, desired accuracy and speed, and necessary integration capabilities should be taken into account.
  2. Camera Selection:ÂCareful consideration should be given to selecting ANPR cameras that are well-suited for the intended application. Factors to evaluate include resolution, lens quality, low-light performance, infrared illuminators, and durability under various weather conditions.
  3. Image Processing and OCR Software: The capabilities and accuracy of the image processing and OCR software provided with the ANPR system should be evaluated. It is essential to ensure that the software utilizes advanced algorithms and offers reliable OCR capabilities for accurate license plate recognition.
  4. Integration and Compatibility: The ANPR system’s compatibility with existing infrastructure, databases, and other relevant systems should be assessed. It is important to determine whether seamless integration can be achieved to streamline operations.
  5. Data Storage and Management: Consideration should be given to the ANPR system’s data storage capacity, data management capabilities, and adherence to data privacy and security regulations. It is crucial to protect personal information and ensure compliance with applicable laws.
  6. Accuracy and Reliability: ANPR systems with high accuracy rates and consistent performance should be preferred. The system should demonstrate the ability to handle various license plate formats and read characters accurately under different conditions.
  7. Scalability and Flexibility: The ANPR system’s scalability and flexibility are important factors to consider. It should have the capability to accommodate future needs such as expanding camera coverage, integrating with additional systems, and handling changes in traffic volume.
  8. Compliance with Regulations: It is vital to ensure that the ANPR system complies with relevant laws, regulations, and privacy requirements. Features such as data anonymization, encryption, access control, and audit trails should be evaluated to safeguard personal information.
  9. Training and Support: Consider the training programs, technical support, and software updates provided by the ANPR system provider. Adequate training and ongoing support are crucial for successful implementation and maintenance of the system.
  10. Cost and Return on Investment:ÂThe overall cost of the ANPR system, including hardware, software, installation, maintenance, and ongoing fees, should be assessed. Additionally, the potential return on investment (RoI) should be evaluated based on efficiency improvements, enhanced security, and potential cost savings.

By carefully considering these factors, individuals or organizations can select an ANPR system that aligns with their specific requirements and maximizes the benefits for their intended application.
